Tektronix TDS2022C Digital Storage Oscilloscope, 200MHz Bandwidth, 2GS/s Sample Rate, 2.5k Record Length, 2 Channels, TFT Color Display Review
The Tektronix TDS2022C is a 200MHz, two-channel, portable digital oscilloscope with a maximum real-time sample rate of 2GS/s per channel, a record length of 2.5 kpts per channel, advanced triggering, three basic math functions and FFT, 16 measurement parameters, waveform limit testing, and USB connectivity for electronics applications such as product design, assembly lines, repair and servicing, and electrical engineering education, among others. The sample rate, which provides real-time sampling with a minimum of 10 times oversampling, and record length enable long capture times for displaying detailed waveforms. Both channels can simultaneously run at the maximum sample rate. Rising and falling edge, pulse width, and line-selectable video triggers allow isolation of specific signals. Three basic math functions—add, subtract, and multiply—plus FFT (fast fourier transform) and 16 measurement parameters such as period, frequency, and peak-to-peak enable an in-depth analysis of waveforms. To aid troubleshooting, the waveform limit test provides a pass/fail comparison of a triggered input signal to a user-defined setting. The data logging feature automatically saves triggered waveforms to a USB memory device for up to 24 hours. Additional specifications include a rise time of 2.1ns and various triggering features. The oscilloscope has a 5.7" diagonal color TFT (thin film transistor) LCD with a resolution of 320 x 240 pixels and an anti-glare surface for viewing waveforms.
The oscilloscope has a USB host port for storing data on a 64GB-maximum USB flash drive (sold separately) and a USB device port for connecting to a PC or compatible printer (USB cable sold separately). It includes OpenChoice PC communications software (compatible with Microsoft Windows 2000, XP PRO, Vista, and 7) for transferring and saving settings, waveforms, measurements, and screen images. It meets European Standard (EN) and International Electrotechnical Commission (IEC) 61010-1:2001, Underwriters Laboratories (UL) 61010-1:2004, and Canadian Standards Association (CSA) C22.2 61010-1:2004 safety standards, and is rated for CAT (category) II installations to 300V, which covers energy-consuming equipment connected to a fixed installation, including household, office, and laboratory appliances. It has European Conformity (CE) marking. The unit comes with two 200MHz passive voltage probes, PC software, a certificate of calibration, a 125VAC, 10 amp power cord, and a user manual.
Specifications
| Display | 5.7" color TFT-LCD |
| Bandwidth | 200MHz |
| Channels | Two |
| Maximum real-time sample rate | 2GS/s per channel |
| Record length | 2.5 kpts |
| Installation rating | CAT II, 300V |
| Standards met | EN and IEC 61010-1:2001, UL 61010-1:2004, and CSA C22.2 61010-1:2004 safety standards; CE marking |
| Power source | 125VAC, 10 amp power cord |
| Dimensions (H x W x D) | 158 x 326.3 x 124.2 mm/6.22 x 12.85 x 4.89 inches |
| Weight | 2 kg/4.4 lb. |
H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Oscilloscopes are electrical testing devices used to verify the functionality of equipment that generates an electrical signal. Oscilloscopes measure the voltage of an electrical signal over time, and display the measurement as a waveform in a visual graph. The waveform shows the sweeps (or refresh) of voltage on a vertical (Y) axis, and the time on a horizontal (X) axis. Details of a waveform demonstrate the signal over time. Most oscilloscopes have two or four channels for inputting a signal. Some digital oscilloscopes offer more than four channels, allowing channels to be dedicated to specific signals and applications. Bandwidth is the maximum frequency of a signal that an oscilloscope can capture. A constant image will display if a signal is shown at a high frequency. Oscilloscopes may be analog, digital, or mixed signal. An analog oscilloscope directly displays an input signal as a continuous waveform, typically in a luminous phosphor on a cathode ray tube (CRT). A digital oscilloscope converts the input signal into a digital format and reassembles the waveform for display, typically on an LCD. A mixed signal oscilloscope (MSO) displays both analog and digital formats. Some oscilloscopes can display more than one channel and type of measurement simultaneously. Some oscilloscopes can capture waveform signals to memory, and recall them. They may provide real-time intensity grading, and may have the ability to adjust frequency of display. Oscilloscopes can be powered with batteries or electricity, or may have a built-in generator. They are commonly used for testing, measuring, and inspecting in science, engineering, telecommunications, automotive, and electronics applications.
Tektronix manufactures test and measurement equipment such as oscilloscopes, signal generators, and protocol, logic, and spectrum analyzers. The company, founded in 1946 and headquartered in Beaverton, OR, meets International Organization for Standardization (ISO) standards 9001 and 14001.

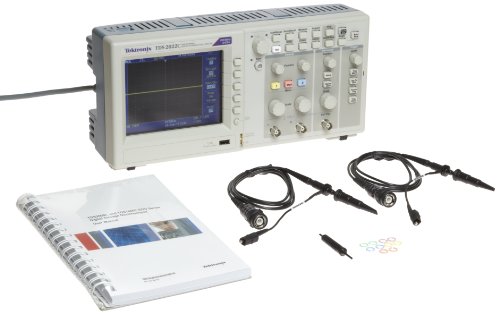

What's in the Box?
- Tektronix TDS2022C digital oscilloscope
- (2) 200MHz passive voltage probes
- Certificate of calibration
- Communications software
- Measurement analysis software
- Power cord
- User manual
Price : $1,683.00
* Get the best price and special discount only for limited time
Tektronix TDS2022C Digital Storage Oscilloscope, 200MHz Bandwidth, 2GS/s Sample Rate, 2.5k Record Length, 2 Channels, TFT Color Display Feature
- 200MHz, two-channel, portable digital oscilloscope for electronics applications such as product design, assembly lines, repair and servicing, and electrical engineering education
- Maximum real-time sample rate of 2GS/s per channel and record length of 2.5 kpts per channel for acquiring detailed waveforms
- Advanced triggers - rising and falling edge, pulse width, and video - allow isolation of specific signals
- 5.7" color TFT-LCD with anti-glare surface for viewing waveforms
- Meets EN and IEC 61010-1:2001 safety standard and is rated for CAT II installations to 300V
Maybe you should visit the following website to get a better price and specification details
Costumer review
0 of 0 people found the following review helpful.
By BeeZee
I've been using an older version of this same part number for 7 years and just now I bought my own. It is easy to use, light weight, and low cost. You can't go wrong with a 200MHZ, 2GS/second unit under $2K from such a reputable manufacturer with lifetime warranty. I thought about buying the generic, Chinese type scopes at 100MHZ for a fraction of that price, but my work is way too important to leave it to chance. I'm happy with my decision.
0 of 1 people found the following review helpful.
By Neel
Just a great product. You can trust Tektronics for all your DSO needs.
No bad experiences with them ever!
Awesome
