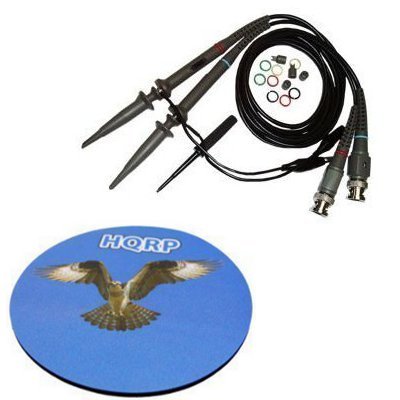

Oscilloscope clip probes 100MHZ T5100 for Tektronix HP X1, X10, 2 Units Review
General Features:- Attenuation: X1 ; X10 ;- Input Resistance: 1MΩ / 10MΩ ;- Input Capacitance : * X1: 85pF - 115pF , * X10: 14.5pF - 17.5pF ;- Compensation Range: 15pF - 35pF ;- System Bandwidth : * X1: DC - 6MHz , * X10: DC - 100MHz ;- Maximum Working Input Voltage: * X1: <150V DC + Peak AC , * X10: <300V DC + Peak AC ;- Net Weight: <55g ;- Cable Length: 120cm ;- Humidity ≤85% (Relative Humidity).These characteristics apply to a T5100 series probe installed on a specified oscilloscope. When used with another instrument, the oscilloscope must have an input impedance of 1 M Ω. The instrument must have a warm-up period of at least 20 minutes and be in an environment that does not exceed the limits.
Price : $24.95
* Get the best price and special discount only for limited time
Oscilloscope clip probes 100MHZ T5100 for Tektronix HP X1, X10, 2 Units Feature
- Attenuation: X1 ; X10 ;
- Input Resistance: 1MΩ / 10MΩ ;
- Compensation Range: 15pF - 35pF
- Humidity ≤85% (Relative Humidity).
- System Bandwidth :- X1: DC - 6MHz , - X10: DC - 100MHz ;
Maybe you should visit the following website to get a better price and specification details
Costumer review
4 of 4 people found the following review helpful.
Oscilloscope Probe and Accessories Review
By Miklos P. Kadar
I purchased these two oscilloscope probes after I bought a 100MHz 4-channel analog Tektronix oscilloscope on E-bay. My older oscilloscope was only rated up to 35MHz so in order to utilize the increased bandwidth I was loking for something reasonably priced and capable of working up to 100MHz. The KIT I got did not disappoint. Nicely packaged, professional looking it came with an adjustment screwdriver plus multiple marker rings and tip locating sleeves in addition to the two oscilloscope probes that looked exactly like an older flavor but small Tektronix oscilloscope probes. They were easy to adjust and I put them to good use right away. In the plastic bag that they came with there was a nice clear description of bandwidth and the maximum voltage range these probes can handle and all the required specs. For the price it is a very good package, I am contemplating to buy another set as well, since my "new" scope has 4 input channels. I can recommend this to anyone who is looking for an oscilloscope probe.
0 of 0 people found the following review helpful.
Great probes for the money.
By Jeff
These probes are great for the money. Attenuation control works just like it should, and both probes trimmed out just fine with the included trimmer.
The only downside I encountered was that the probe tips don't always make a solid connection in the "hat," so sometimes you have to push the probe into the hat a couple times. This doesn't limit its use, and I can hardly complain for a $25 set of probes.
I can't comment on whether or not the probes live up to their BW specification because everything I do is under 100 kHz. However, I seriously doubt people scouring the web looking for $25 probes are overly concerned with signal integrity.
