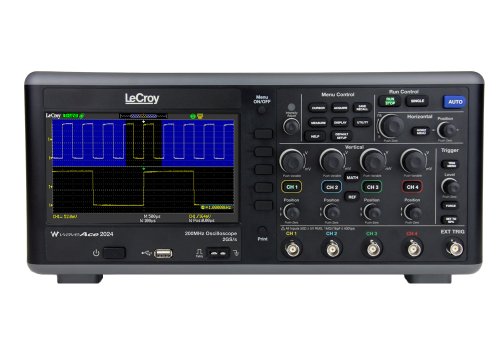

LeCroy WaveAce 2024 7" TFT-LCD Display Digital Oscilloscope, 4 Input Channel, 200MHz Bandwidth, 2 GS/s (Interleaved), 1 GS/s (All Channels) Review
The LeCroy WaveAce 2000 series is a four-channel, portable digital oscilloscope with a maximum real-time sample rate of 1GS/s per channel (2GS/s interleaved), a record length of 12 kpts per channel (24 kpts interleaved), advanced triggering, four basic math functions and FFT, 32 measurement parameters, an internal memory for data storage, and USB connectivity for electronics applications such as product design, serial data testing, disk drive testing, and automotive bus analysis, among others. The high sample rate and deep memory enable long capture times for displaying detailed waveforms. In addition to an edge trigger, the unit has pulse width, video, and slope triggers for isolating a specific signal as well as an alternate trigger for simultaneous observation of two unrelated signals. Four basic math functions—add, subtract, divide, and multiply—plus FFT (fast fourier transform) and 32 measurement parameters such as averaging, frequency, and peak detection allow an in-depth analysis of waveforms. To aid debugging, the oscilloscope features a waveform sequence recorder that can capture and replay a sequence of up to 2,500 waveforms and its pass/fail mask testing promptly indicates problems. Low-pass, high-pass, band-pass, and band-stop filters allow isolation of specific frequencies and the zoom function magnifies details of waveforms. Up to 20 waveforms, two reference waveforms, and 20 setups can be stored in the internal memory of the oscilloscope. Additional specifications include a rise time of 5.0ns to 50s per division for the 70MHz model, 2.5ns to 50s per division for the 100 and 200MHz models, and 1ns to 50s per division for the 300MHz model, and various triggering features. The oscilloscope has a 7" color TFT (thin film transistor) LCD with a resolution of 480 x 234 pixels that can simultaneously show up to five waveforms.
The oscilloscope has a power cord for 100 to 240VAC, 45 to 440Hz. It has a USB host port for saving screen images, waveforms and setups to a flash drive, a USB device port for connecting to a PC or printer, and a LAN port for connecting to a PC for remote operation of the oscilloscope via the included WaveStudio software. The software is compatible with Microsoft Windows XP, Vista, and 7, with support for 32 and 64 bits. The unit meets EN (European Standard) 61010-1:2010 and 61010-2:030:2010, UL (Underwriters Laboratories) 61010-1, and CAN/CSA (Canadian Standards Association) C22.2 61010-1-12 safety standards, and is rated for CAT (category) II installations to 300V, which covers energy-consuming equipment connected to a fixed installation, including household, office, and laboratory appliances. It has CE (European Conformity) marking. It comes with four passive voltage probes, a USB cable, WaveStudio PC software, a certificate of calibration, a power cord for 100 to 240VAC, 45 to 440Hz, and a user manual.
Specifications
| Display | 7" color TFT-LCD |
| Bandwidths available | 70, 100, 200, and 300MHz |
| Channels | Four |
| Maximum real-time sample rate | 1GS/s per channel, 2GS/s interleaved |
| Record length | 12 kpts per channel, 24 kpts interleaved |
| Installation rating | CAT II, 300V |
| Standards met | EN 61010-1:2010 and 61010-2:030:2010, UL 61010-1, and CAN/CSA C22.2 61010-1-12 safety standards; CE marking |
| Power source | Power cord for 100 to 240VAC, 45 to 440Hz |
| Dimensions (H x W x D) | 163 x 360 x 124.1 mm/6.42 x 14.17 x 4.89 inches |
| Weight | 3.33 kg/7.4 lb. |
H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Oscilloscopes are electrical testing devices used to verify the functionality of equipment that generates an electrical signal. Oscilloscopes measure the voltage of an electrical signal over time, and display the measurement as a waveform in a visual graph. The waveform shows the sweeps (or refresh) of voltage on a vertical (Y) axis, and the time on a horizontal (X) axis. Details of a waveform demonstrate the signal over time. Most oscilloscopes have two or four channels for inputting a signal. Some digital oscilloscopes offer more than four channels, allowing channels to be dedicated to specific signals and applications. Bandwidth is the maximum frequency of a signal that an oscilloscope can capture. A constant image will display if a signal is shown at a high frequency. Oscilloscopes may be analog, digital, or mixed signal. An analog oscilloscope directly displays an input signal as a continuous waveform, typically in a luminous phosphor on a cathode ray tube (CRT). A digital oscilloscope converts the input signal into a digital format and reassembles the waveform for display, typically on an LCD. A mixed signal oscilloscope (MSO) displays both analog and digital formats. Some oscilloscopes can display more than one channel and type of measurement simultaneously. Some oscilloscopes can capture waveform signals to memory, and recall them. They may provide real-time intensity grading, and may have the ability to adjust frequency of display. Oscilloscopes can be powered with batteries or electricity, or may have a built-in generator. They are commonly used for testing, measuring, and inspecting in science, engineering, telecommunications, automotive, and electronics applications.
Teledyne LeCroy manufactures test and measurement equipment such as oscilloscopes, protocol and logic analyzers, and signal testers. The company, founded in 1964, is headquartered in Chestnut Ridge, NY.
What's in the Box?
- LeCroy WaveAce digital oscilloscope
- (4) passive voltage probes
- USB cable
- WaveStudio PC software
- Certificate of calibration
- Power cord
- User manual
Price : $2,280.00
* Get the best price and special discount only for limited time
LeCroy WaveAce 2024 7" TFT-LCD Display Digital Oscilloscope, 4 Input Channel, 200MHz Bandwidth, 2 GS/s (Interleaved), 1 GS/s (All Channels) Feature
- Four-channel, portable digital oscilloscope for electronics applications such as product design, serial data testing, disk drive testing, and automotive bus analysis
- Maximum real-time sample rate of 1GS/s per channel, 2GS/s interleaved, and record length of 12 kpts per channel, 24 kpts interleaved, for acquiring detailed waveforms
- Edge, pulse width, video, and slope triggers allow isolation of specific signals and the alternate trigger allows simultaneous observation of two unrelated signals
- Four basic math functions plus FFT and 32 measurement parameters for analyzing waveforms
- 7" color TFT-LCD can simultaneously show up to five waveforms
Maybe you should visit the following website to get a better price and specification details
Costumer review
0 of 0 people found the following review helpful.
By Arthur Sobel
The last scope I bought was a 1980 Kikusui 100 Mhz scope to 1700 dollars. This unit has 4 channels at 200 Mhz and is able to act as a storage scope so I can catch those infrequent signals. IT also weighs in at far less so I can actually carry it from location to location. The screen is wonderful my old eyes too.
