Best Reviews of ARM DSO Nano Pocket-Sized Digital Oscilloscope w/ AGPtek USB 2.0 All in one card reader

ARM DSO Nano Pocket-Sized Digital Oscilloscope w/ AGPtek USB 2.0 All in one card reader Review

Features:
This pocket oscilloscope is primarily used for applications in the following situations:
1. Go on-site repair common electronic equipment (air conditioning or industrial frequency power conversion, AC / DC switching power supply or inverter, elevator and building fire-fighting equipment, industrial control circuit).
2. Hardware maintenance or software debugging RS232, RS485, I2C, CAN and other communications interface circuits, LED display and keyboard scan driver circuit, brushless motor drive circuit.
3. Audio equipment and circuits, electronic toys and remote control model car repair electronic circuits.
4. School after-school teaching practice and student development of electronic small production.
5. Need to slow signal changes observed for applications (such as: relay and switch contact bounce, the battery charge and discharge curves, power supply load transient response characteristics of the temperature sensor measurements).
6. Supply the electronic circuit (SCR voltage, power factor compensation, electronic energy saving lamps, dysprosium lamp mercury lamp sodium lamp drive circuit xenon lights).

Setup your SD card for first time usage:
1. Format SD card with FAT16.
2. Download Datafile.
3. Decompress it, and copy to the root folder of SD card.

Package includes£º

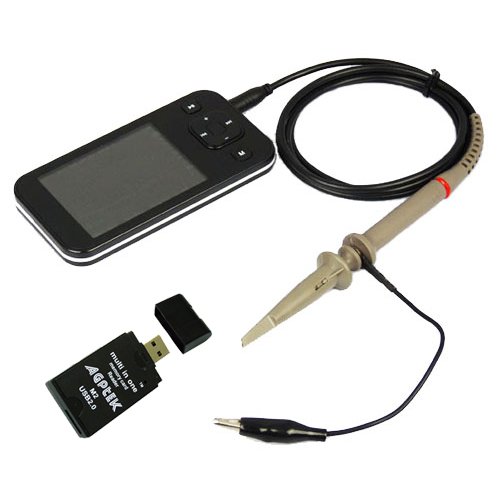

1 x ARM Digital Oscilloscope
1 x 3.7v lithium battery with Connector
1 x Probe
1 x Mini USB Cable
1 x USB 2.0 AGPtel All-in-One Card Reader

Price :
* Get the best price and special discount only for limited time

ARM DSO Nano Pocket-Sized Digital Oscilloscope w/ AGPtek USB 2.0 All in one card reader Feature

• It is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements, ideal for production test, research, design and education.
• Display: 2.8¡å Color TFT LCD. Display Resolution: 320¡Á240. Display Color: 65K. Analog bandwidth: 0 - 1MHz. Horizontal sensitivity: 1uS/Div¡«10S/Div (1-2-5 Step).Vertical sensitivity: 10mV/Div¡«10V/Div (with ¡Á1 probe), 0.5V/Div¡«100V/Div (with ¡Á10 probe). Test signal: Built-in 10Hz¡«1MHz (1-2-5 Step).
• Max sample rate: 1Msps 12Bits. Sample memory depth: 4096 Point. Horizontal position: adjustable with indicator. Dimension (w/o probe): 105mm X 53mm X 8mm. Power supply: 3.7V Chargeable Lithium battery / USB.
• Coupling: DC. Trig modes: Auto, Norma, Single, None and Scan. Waveform storage: SD card. PC connection via USB: as SD card reader. Upgrade: by boot loader via USB.
• Functionalities:Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage; Precise vertical measurement with markers; Precise horizontal measurement with markers; Rising/falling edge trigger; Trig level adjustable with indicator; Trig sensitivity adjustable with indicator; Hold/run feature.
