ARM DSO Nano - Pocket-sized Digital Oscilloscope Review

Features:

Display 2.8″ Color TFT LCD
Display Resolution 320×240
Display Color 65K
Analog bandwidth 0 - 1MHz
Max sample rate 1Msps 12Bits
Sample memory depth 4096 Point
Horizontal sensitivity 1uS/Div～10S/Div (1-2-5 Step)
Horizontal position adjustable with indicator
Vertical sensitivity 10mV/Div～10V/Div (with ×1 probe)
0.5V/Div～100V/Div (with ×10 probe)
Vertical position adjustable with indicator
Input impedance >500KΩ
Max input voltage 80Vpp (by ×1 probe)
Coupling DC
Trig modes Auto, Norma, Single, None and Scan
Functionalities: Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage
Precise vertical measurement with markers
Precise horizontal measurement with markers
Rising/falling edge trigger
Trig level adjustable with indicator
Trig sensitivity adjustable with indicator
Hold/run feature
Test signal Built-in 10Hz～1MHz (1-2-5 Step)
Waveform storage SD card
PC connection via USB as SD card reader
Upgrade by boot loader via USB
Power supply 3.7V Chargeable Lithium battery / USB
Dimension (w/o probe) 105mm X 53mm X 8mm

Packing List

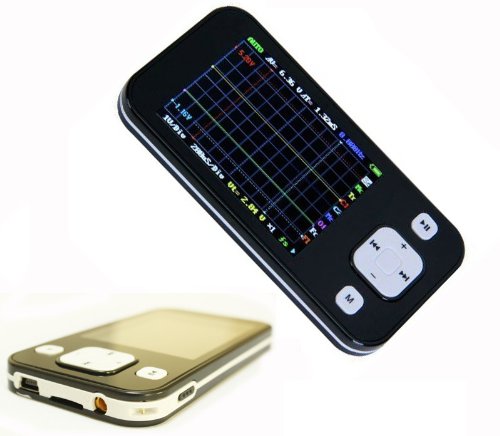

- ARM Digital Oscilloscope (Fig.1) (3.7v cell inside) x1
- Probe x1
- Mini USB Cable x1

DSO nano is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements. It is base on ARM CortexTM-M3 compatible 32 bit platform, equipped with 320*240 color display, Mini SD card capability, USB connection, and chargeable batteries. Weighs only 60g.

Price : $69.59
* Get the best price and special discount only for limited time

ARM DSO Nano - Pocket-sized Digital Oscilloscope Feature

• This pocket oscilloscope is primarily used for applications in the following situations: 1. Repair common electronic equipment outside (Air conditioning or Industrial frequency inverter power supply, AC / DC switching power supply or inverter, elevator and building fire safety equipment, industrial control circuit)
• 2. Hardware maintenance or software debugging RS232, RS485, I2C, CAN and other communications interface circuits, LED display and keyboard scan driver circuit, brushless motor drive circuit 3. Audio equipment and circuits, electronic toys and remote control models, car repair electronic circuits
• 4. School after-school teaching practice and student development of electronic small production 5. Need to slow signal changes observed applications (such as: relay and switch contacts jitter, battery charge and discharge curves of the load transient response power supply, temperature sensor features measurement)
• 6. The related supply t electronic circuit (SCR voltage regulator, power factor correction, electronic energy saving lamps, dysprosium lamp mercury lamp sodium lamp xenon lights drive circuit), As for other issues such as: CPU clock, RAM access, bus and USB or Ethernet signal measurement, high frequency and the video circuitry and the need to use FFT for signal analysis and so on occasion, The oscilloscope valued less than $1000 are not necessarily qualified for these. We advice to buy high-end oscilloscope! Deserves special mention is this pocket-sized internal battery-powered oscilloscope can be used, so in the field measurement, Ground is completely suspended, can be completely the same as multimeters, which measure what point, do not consider the issue of ground isolation.

ARM DSO Nano - Pocket-sized Digital Oscilloscope
