Who Sells Cheap Owon Portable Digital Oscilloscope 25mhz Pds5022s

Owon Portable Digital Oscilloscope 25mhz Pds5022s Review

Specification:
Model: PDS5022S
Bandwidth: 25MHz
Sample rate(Real time): Dual Channel 100MS/s
Horizontal Scale(S/div): 5ns/div - 100s/div,step by 1 - 2.5 - 5
Rise time (at input, typical): ≦14ns
Channels: Dual channels + external trigger
Display: 7.8 inch color LCD, STN screen, 640×480 pixels
Input impedance: 1M∏±2% ,in parallel with 20pF±5pF
Isolation between channels: 50Hz(100:1), 10MHz(40:1)
Max. input voltage: 300V(DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:1)
DC gain accuracy: ±3%
Probe attenuation factor: 1X , 10X , 100X , 1000X
LF respond(AC, -3dB): ≧ 5Hz(at input)
Interpolation: (sin x)/x
Interval(△T) accuracy(full bandwidth): Single: ±(1 interval time+100ppm×reading+0.6ns)>16, Average:±(1 interval time+100ppm×reading+0.4ns)
Input coupling: DC, AC
Displacement: ±10V(500mV/div - 5V/div)
Vertical resolution (A/D): 8 bit (2 channels simultaneously)
Trigger mode: Auto, Normal , Single
Trigger level: Internal: ±6 divisions from screen center, EXT: ±600Mv, EXT/5: ±3V
Trigger coupling: DC Coupling, AC Coupling, LF Inhibition, HF Inhibition
Trigger sensitivity (Video, typical): Internal: Peak values between 2 cells,EXT:400mV,EXT/5:2V
Line/field frequency(Video): Support NTSC, PAL and SECAM
Cursor measurement: V and △T between cursors
Automatic measurement: Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot,Pre-shoot,Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A B ,Delay A B
Waveform math: +, - , * , / , RP
Waveform storage: Brandwidth: Full, Phase difference: ±3 degrees
Communication interface: USB, RS232
Power supply: 100V-240V ACR

Price :
* Get the best price and special discount only for limited time

Owon Portable Digital Oscilloscope 25mhz Pds5022s Feature

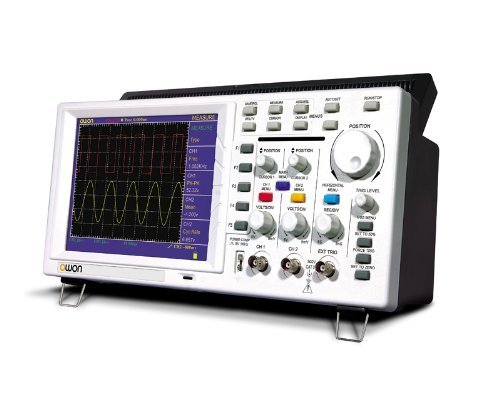

Owon Portable Digital Oscilloscope 25mhz Pds5022s

Maybe you should visit the following website to get a better price and specification details
