Hantek DSO-2150 60MHz 150Ms/s PC USB PORT Digital Oscilloscope DSO2105 Review

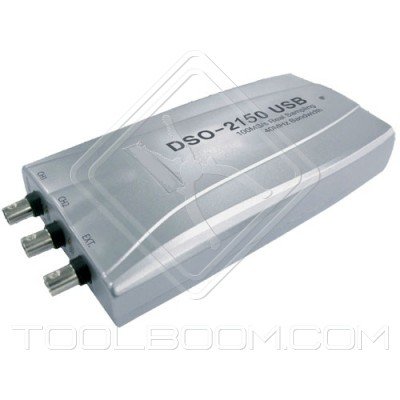

DSO-2150 is a USB Oscilloscope with two channels featuring a 150MS/s sampling rate and a 60Mhz Bandwidthit is professional tester and with multi-function. What's more, it is easy to operate.Hantek DSO-2150 PC USB Digital Oscilloscope 150MS/S 2ch, designed for general signal testing it is ideal for the student, hobbyist or engineerthe DSO-2150 has a small size, low power consumption and high reliability. Supplied with feature-rich Oscilloscope software package, programming examples and LabVIEW drivers.

Specification:
Channel:　2 Channel
Impedance: 1MΩ 25pF
Coupling: AC/DC/GND
Vertical resolution: 8Bit
Gain range: 10mV-5V, 9Steps
DC accuracy: ±3%
Timebase range: 4ns-1h, 38 Steps
Vertical adjustable: Yes
Input protection: Diode clamping
X-Y: Yes
Autoset: Yes (30Hz to 60MHz)
EXT. input: Yes
Trigger Mode: Auto, Normal and Single
Trigger Slope: +/-
Trigger level adjustable: Yes
Trigger Type: Rising edge, falling edge
Trigger Source: CH1, CH2, EXT
Pre/Post trigger: 0-100%
Buffer size: 10K-32KB/Channel
Shot bandwidth: DC to 60MHz
Max. Sample rate: 150MS/s
Sampling selection: Yes
Waveform Display: port/line, waveform average, persistence, intensity
Network: Open/Close
Vertical mode: CH1, CH2, Dual, ADD
Cursor measurement: Yes
Spectrum analyzer
Channel: 2 Channels
Math: FFT, addition, subtraction, multiplication, division.
Bandwidth: 60MHz
Cursor: Frequency, Voltage
Data Samples: 10K-32K/Channel
Accessories: S/W CD, probes, manual, USB cord
Software Support: Windows98,Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA
Secondary development: Provide a common development platform DEMO code (VC,CVI,VB,LABVIEW) and technical support.

Price :
* Get the best price and special discount only for limited time

Hantek DSO-2150 60MHz 150Ms/s PC USB PORT Digital Oscilloscope DSO2105 Feature

• USB2.0 interface, no external power source required, easy to use
• High performance, 150MS/s real-time sampling, 60MHz Bandwidth
• 23 measurement functions, PASS/FAIL Check, be suitable for technical application
• Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot
• Labview\VB\VC\Delphi\C++Builder Second Design instance
